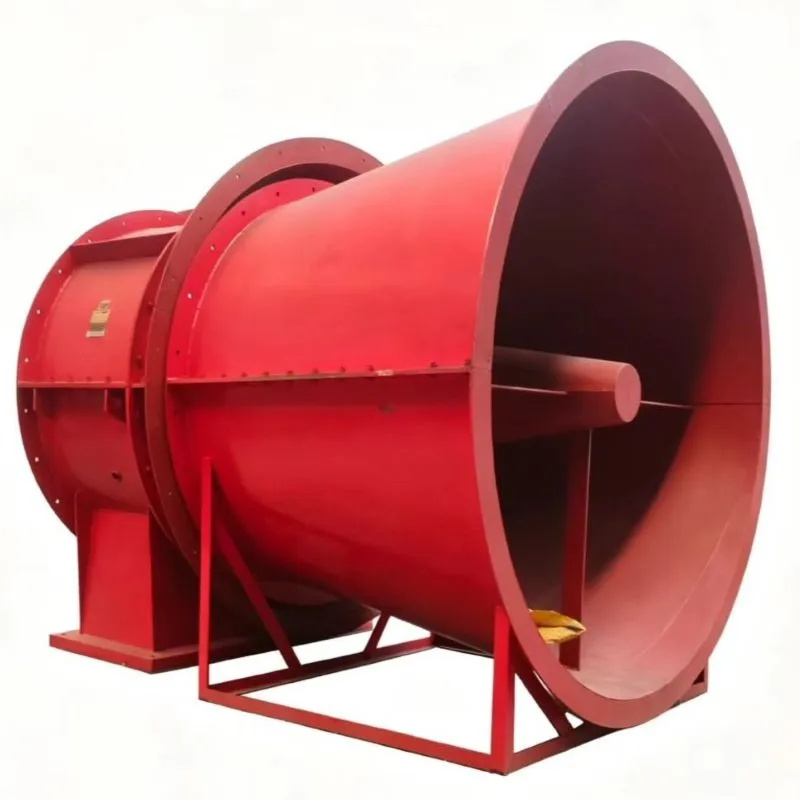

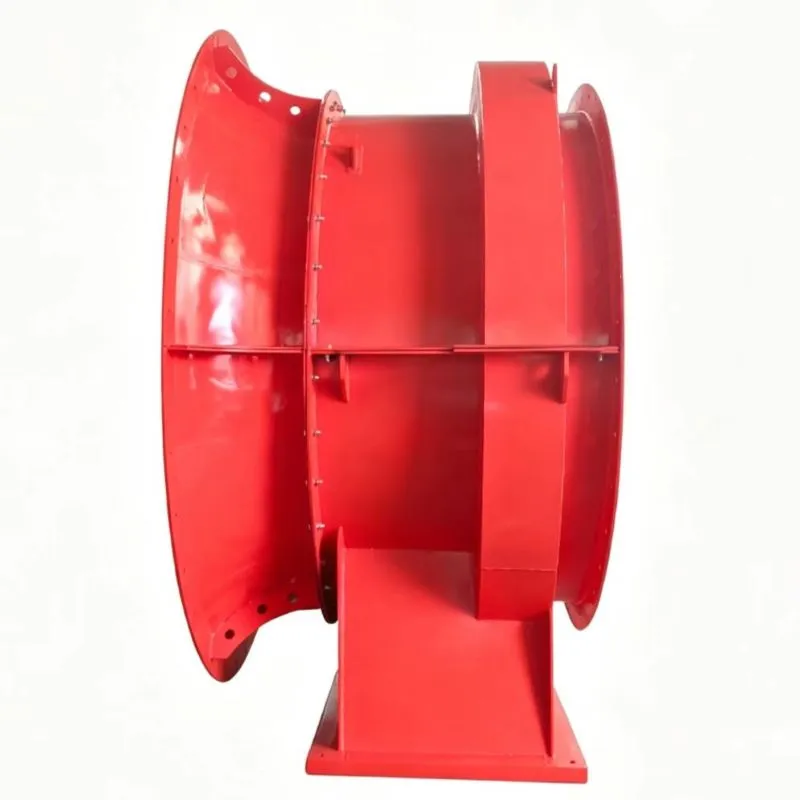

1. Mine Ventilator – 250KW Mine Axial Flow Fan Application
This series of fans is specifically designed to meet the ventilation needs of various non-mine industries such as metallurgy, mining, gold, chemical, building materials, and nuclear industries. It can be used as the main fan or auxiliary fan, and can be installed on the surface or underground. It is suitable for multi-fan combined operation and is an ideal station fan in multi-fan series ventilation systems with multiple stations. It is also applicable for ventilation and air exchange in large workshops, tunnels, and civil defense projects.
2. Mine Ventilator – 250KW Mine Axial Flow Fan Features
(1) It adopts twisted airfoil blades, which have high aerodynamic efficiency and remarkable energy-saving effect.
(2) It has diverse performance and complete specifications, and can be well matched with various types of ventilation networks with different resistance and air volume. It can maintain long-term efficient operation.
(3) It is equipped with a stable flow ring device, with a smooth characteristic curve. There is no surge risk. It can operate safely and stably under any resistance condition and is suitable for multi-fan combined operation.
(4) It adopts a direct connection structure between the motor and the impeller, with good overall stability, convenient installation, easy maintenance, and low installation resistance. It has higher efficiency than belt and long shaft transmission, without transmission faults, no shaft breakage risks, and slight foundation subsidence and slippage do not affect normal operation.
(5) The structure is compact, and the moisture-proof performance is good. The main body of the fan is made of steel plate and type steel welding structure, the blades are made of steel material, hollow, with high strength of the blades and the overall structure, strong resistance to underground blasting shock waves, which can be installed on the surface or underground, especially suitable as station fans in multi-stage station ventilation systems.
(6) It can reverse and reverse wind, with a reverse wind rate greater than 60%, and no need to build a reverse wind channel.
(7) The blade installation angle can be adjusted, which can be adjusted to the working conditions of the fan at any time according to the changes in mine production.
(8) The construction engineering volume is small, which can save a lot of investment.
(9) The noise is low.
3. Mine Ventilator – 250KW
Diffuser
When the K and DK series mine energy-saving fans are used as the main fan and station fan, they should be equipped with dedicated diffusers. The surface main fan equipped with a diffuser can convert part of the kinetic pressure into static pressure, reducing the loss of the outlet kinetic pressure to achieve energy-saving purposes. The fan installed underground is equipped with a diffuser, which can reduce the local resistance coefficient and the outlet kinetic pressure value of the diffuser, thereby significantly reducing the local resistance of the fan installation and saving ventilation power consumption.
